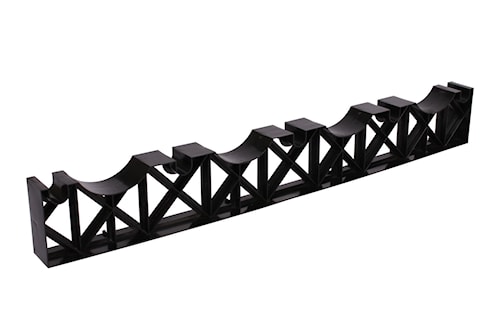

IPEX 029489 Monobloc® Duct Spacer 4 Way, Lightweight, Weatherproof High-Density Polyethylene Black

Price $15.64 / EA
Inventory
Available for backorder
Unavailable for pick up Ajax
Qty EA
Manufacturer:IPEX
Manufacturer #:029489
Documents Documents

Description

Monobloc spacers accommodate the specific dimensions of DB and EB duct and can be used as both a base spacer and an intermediate spacer for versatility. Monobloc spacers support DB/EB duct in sizes 2” – 5” and are available in a range of configurations that provide 1” to 3” separation between ducts. To minimize jobsite assembly these spacers are available as single, double, triple or quad run units (way). Any number of parallel conduit runs can be accommodated by combining Monobloc spacers (i.e. a 2-way and a 3-way create a 5-way).

Specifications

Brand Name Ipex Sub Brand Monobloc®
Item Name Duct Spacer Type 4 Way, Lightweight, Weatherproof
Trade Size 4 in Material High-Density Polyethylene
Finish Black Dimensions 3 in Vertical Spacing x 3 in Horizontal Spacing x 3 in Ground Clearance
For Use With 101.6 mm Conduit Standards UL Listed, CSA Certified
Application For Telephone Duct UPC 622454294899
