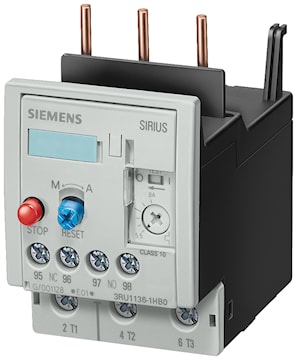

SIEMENS 3RU11364DB0 Sirius Thermal Overload Relay 1NO, 1NC 9 W

Inventory
Unavailable for order
Manufacturer:SIEMENS
Manufacturer #:3RU11364DB0

Description

SIEP 3RU1136-4DB0 O/L RLY W/SCRTERM

Specifications

Brand Name Siemens Sub Brand Sirius
Item Name Thermal Overload Relay Class Class 10
Voltage Rating 690 VAC Power Rating 9 W
Contact Configuration 1NO, 1NC Number of Poles 3
Phase 3 Wire Size Main Contact: (2) 0.75 - 16 mm² Solid, (2) 0.75 - 25 mm², 0.75 - 35 mm² Stranded, (2) 0.75 - 16 mm², 0.75 - 25 mm² Finely Stranded with Core End Processing, Auxiliary Contact: (2) 0.5 - 1.5 mm², (2) 0.75 - 2.5 mm² Solid, (2) 0.5 - 1.5 mm², (2) 0.75 - 2.5 mm² Finely Stranded with Core End Processing
Overload Amperage 18 - 25 A Terminal Type Screw
Frame Size S2 Dimensions 55 mm W x 118 mm D x 105 mm H
Mounting Contactor, Direct Attachment Enclosure Type IP20
Standards DMT 98 ATEX G 001, CCC, CSA Certified, UL Listed, EAC Approved, CE, Ex ATEX, IECEx UPC 754554412481
