intet2115c

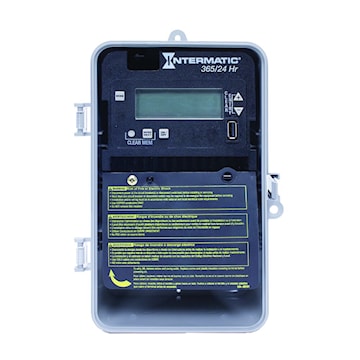

INTERMATIC ET2115C 365/24 HOUR, 1XSPDT,ELECTRONI
intet2115c
INTERMATIC ET2115C 365/24 HOUR, 1XSPDT,ELECTRONI
Price
$338.04
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:INTERMATIC
Manufacturer #:ET2115C
Description
The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application.
100-hour supercapacitor eliminates the need for batteries
Up to 96 set points or events
Up to 50 holiday blocks with schedule capabilities
Automatic input voltage selection from 120 to 277 VAC, 60 Hz
Additional mode of operation turns the ON/OFF buttons into 2-hour overrides
Configurable outputs allow the control of various voltages and applications
Relays incorporate zero-crossing technology to extend the life of the control
Non-volatile EEPROM memory protects programming indefinitely
LED compatible
USB port makes transferring and saving of schedules easy
Specifications
| Brand Name | Intermatic | Type | Electronic |
| Voltage Rating | 120 - 277 VAC | Amperage Rating | 30 A |
| Contact Configuration | 1 NO, 1 NC | Contact Rating | 20 AMP @ 120/240 VAC, 20 AMP @ 28 VDC (Resistive), 20 AMP @ 120/240 VAC (Inductive), 20 AMP @ 120/240 VAC (Magnetic Ballast), 10 AMP @ 120/277 VAC (Electronic Ballast) |
| Frequency Rating | 50/60 Hz | Number of Poles | 1 |
| Mounting | Wall Mount | Standards | UL Rating, Meet Title 20/24 Compliance |
| Application | Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor | UPC | 078275147980 |
