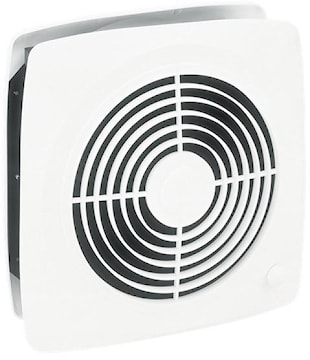

VENMAR 511N Bathroom Fan Square Grille, Room to Room Discharge 0.9 A, 120 V
Description
Eliminate humidity from laundry rooms, tobacco smoke from rec rooms, fumes from workshops or cooking fumes from kitchens with Broan's utility ventilators. Easily installs in interior walls to move heated or cooled air from one room to another. Spreads heat from fireplaces, cool air from air conditioners to adjoining rooms. Ventilator shall be steel housing finished with electrically bonded epoxy paint. Grille to be white polymeric. Permanently lubricated, thermally protected, plug-in motor. Motor assembly offers fast, easy twist-lock installation. Built-in solid state speed control for fan speed and sound level selection. Housing 25 gauge finished with rugged electrically-bonded epoxy paint.
Specifications
Brand Name | Broan-Nutone | Item Name | Bathroom Fan |
Type | Square Grille, Room to Room Discharge | Flow Rate | 180 ft³/min |
Duct Diameter | 8 in | Voltage Rating | 120 V |
Amperage Rating | 0.9 A | Grille Length | 13-1/2 in |
Grille Width | 13-1/2 in | Grille Material | Polymer |
Housing Length | 11-1/2 in | Housing Height | 3 in |
Housing Material | Steel | Mounting Type | Wall |
Noise Level | 3.5 | Color | White |
Standards | cUL Listed, CSA, HVI 2100 Certified | Application | For Kitchens, Laundry Rooms, Recreation Rooms and Workshops |
UPC | 055321620055 |
