sieseq24100sm

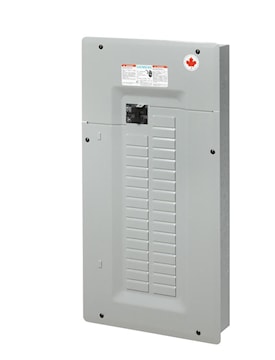

24 Circuit 100 amp Single Phase Panel
sieseq24100sm
24 Circuit 100 amp Single Phase Panel
Price
$139.50
$254.38
/ EA
Inventory
Available for delivery
Available for pick up at
Ajax
Manufacturer:SIEMENS
Manufacturer #:SEQ24100SM
Description
Loadcenters are classified into 4 types EQL (1 phase main lug distribution no main), SEQ (1 phase with main breaker), EQ4 (3 phase with main breaker) and EQD(generator suuply) consists of the enclosure, the interior connection and the trim panel. Available in version 120/240vac 60/200A-40/80 circuits or 120/208vac 100/225A-12/42 circuits all type eemac 1 interior or 3R outdoor. Made of cold rolled gauge steel finished with gray paint, they are certified listed CSA.
Specifications
| Brand Name | Siemens | Sub Brand | Loadcentres |
| Item Name | Single Phase Main Breaker Load Centers | Type | SEQ |
| Number of Circuits | 24 | Number of Spaces | 48 |
| Number of Poles | 2 | Voltage Rating | 240 V |
| Amperage Rating | 100 A | Phase | 1 |
| Mounting Type | Surface | Breaker/Load Center Type | Miniature/Earth Leakage |
| Wiring Configuration | 3 Wire | Conductor Size | 4-2/0 AWG |
| Construction | Steel Housing | Dimensions | 333 mm W x 95 mm D x 613 mm H |
| Application | For Residential | UPC | 662862004581 |
Packages
| 1 - rarr_unit_1 | 24 - rarr_unit_2 | 27 - rarr_unit_3 | 36 - rarr_unit_4 |
