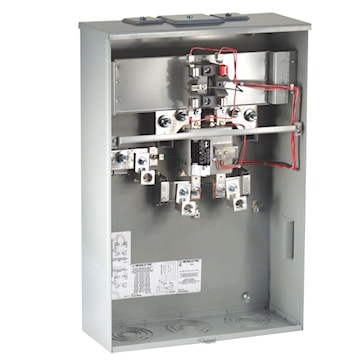

ABB INS JS4A Microlectric® Meter Socket with Automatic Circuit Closing Device 400 A, 1 PH, 120/240 V
Final sale
micjs4a
ABB INS JS4A Microlectric® Meter Socket with Automatic Circuit Closing Device 400 A, 1 PH, 120/240 V
Inventory
Unavailable for order
Manufacturer:ABB INS
Manufacturer #:JS4A
Description
MICROELECTRIC® meter socket, JS4 series equipped with automatic circuit closing device. Twin covers allow access to either compartment. Hub opening closure plate for underground service. Line side terminations double 1/2 inch studs to accommodate compression lugs for underground service (1 x 500 kcmil or 2 x 250 kcmil). Load side terminations tunnel type connectors, dual rated for 1 x 500 kcmil or 2 x 250 kcmil. Fully wired secondary circuits. Weatherproof type 3R enclosure.
Specifications
| Brand Name | ABB | Sub Brand | Microlectric® |
| Item Name | Meter Socket with Automatic Circuit Closing Device | Type | Transformer Rated |
| Amperage Rating | 400 A | Voltage Rating | 120/240 V |
| Phase | 1 | NEMA Rating | Type 3R Weatherproof |
| Mounting Type | Surface | Dimensions | 20.25 mm W x 8.37 mm D x 30.62 mm H |
| Standards | CSA 27716 | Application | For Overhead/Underground Installation |
| UPC | 624871034263 |
