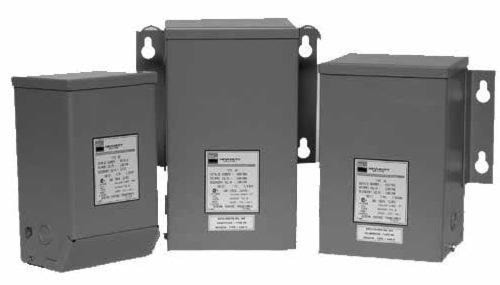

SOLA/HEVI-DUTY HS5F3AS SolaHD™ Encapsulated Distribution Transformer Automation, Non-Ventilated 3 kVA 1 PH, 240/480 VAC, NEMA 3R
solhs5f3as
SOLA/HEVI-DUTY HS5F3AS SolaHD™ Encapsulated Distribution Transformer Automation, Non-Ventilated 3 kVA 1 PH, 240/480 VAC, NEMA 3R
Price
$892.19
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:SOLA/HEVI-DUTY
Manufacturer #:HS5F3AS
Description
SOLAHD encapsulated non-ventilated automation transformer. Single phase. Electrostatically shielded for quality power. Conduit knockouts for side entry into wiring compartment. Copper lead wire terminations. Encapsulated with electrical grade silica sand and epoxy for industrial applications. Rated for use in hazardous locations as well as harsh industrial environments. Rugged NEMA 3R enclosures protect the transformer from dust and moisture while providing extra shock and vibration resistance.
Specifications
| Brand Name | Emerson | Sub Brand | SolaHD™ |
| Item Name | Encapsulated Distribution Transformer | Type | Automation, Non-Ventilated |
| Primary Voltage | 240/480 VAC | Secondary Voltage | 120/240 V |
| VA Rating | 3 kVA | Frequency Rating | 60 Hz |
| Amperage Rating | 15.6/31.3 A Input, 31.3/62.5 A Output | Phase | 1 |
| Power Rating | 7.5 kW | Dimensions | 9 in L x 14 in W x 12 in H |
| Enclosure Type | NEMA 3R | Temperature Rating | 115 °C |
| Standards | E25872, E77014, UL 1561 or UL 506 Listed, CSA C22.2 No. 47 or No. 66 Certified | Application | SolaHD Encapsulated Transformer Rated for Harsh Industrial Environments |
| UPC | 783472111220 |
