lev515pr

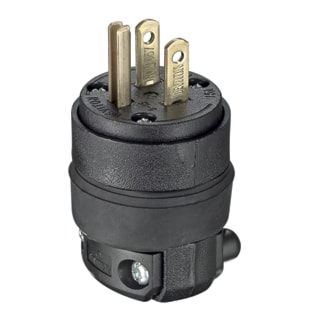

LEVITON 515PR Straight Blade Male Plug 15 A, 125 V, Straight Blade;Rubber
lev515pr
LEVITON 515PR Straight Blade Male Plug 15 A, 125 V, Straight Blade;Rubber
Price
$2.98
/ EA
Inventory
Available for delivery
Unavailable for pick up
Ajax
Manufacturer:LEVITON
Manufacturer #:515PR
Description
Plug straight blade rubber features moisture, chemical and abuse-resistant and they are ideal for indoor and outdoor use. These plugs are rubber-backed stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.
Specifications
| Brand Name | Leviton | Sub Brand | RESIDENTIAL PLUGS AND CONNECT |
| Item Name | Straight Blade Male Plug | Type | Rubber,Straight Blade |
| Number of Wires | 3 | Number of Poles | 2 |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Conductor Size | 18-12 AWG | Color/Finish | Black |
| Cord Size | 0.245 - 0.7 in | Temperature Rating | -40 °C to 60 °C |
| Contact Material | Brass | NEMA Rating | 5-15P |
| Material | EPTR Rubber | Grounding | Yes |
| Mounting Type | Cable | Dimensions | 1.54 in dia x 2.77 in H |
| Environmental Conditions | UL 94 Requirements, V2 Rated Flammability | Includes | Zinc Plated Steel Assembly Screws |
| Standards | ANSI C73, CSA File Number LR406, UL 498, UL File Number E13393, CSA C22.2 No. 42, NOM 057 Certified, NEMA WD-6 | Application | Commercial |
| UPC | 078477841426 |
