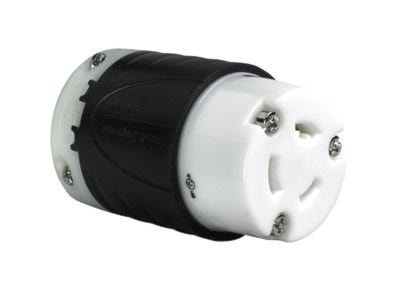

LEGRAND L3720C Pass & Seymour Straight Locking Connector 20 A, L24-20R Black/White
Description
Connector with raised ribs provide non-slip gripping profile for turning to lock and unlock. Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire. Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity. Double dovetail design provides superior protection against cord pull-out forces. Impact- and corrosion-resistant durable nylon 6/6 shell material. Rounded back contour reduces snags and hang-ups on the job site. Scallop shell design provides non-slip gripping surface for insertion and withdrawal. Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water or chips entering wiring chamber.
Specifications
Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
Item Name | Locking Connector | Type | Straight |
Size | 3.4" | Voltage Rating | 347 V |
Amperage Rating | 20 A | Number of Poles | 2 |
Number of Wires | 3 | NEMA Configuration | L24-20R |
NEMA Rating | L24-20R | Conductor Size | 18 - 10 AWG |
Material | Thermoplastic | Color | Black/White |
Phase | 3 | Degree of Protection | IP20 |
Terminal Connection | Screw Terminal | Dimensions | 3.4 in L |
Standards | UL 498 | Application | Commercial |
UPC | 785007233155 |
