levr2120b

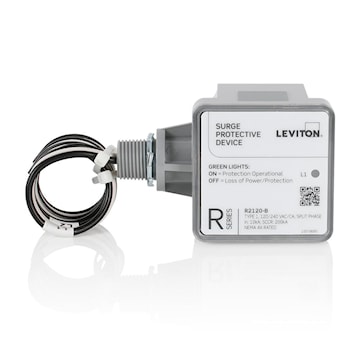

LEVITON R2120-B Type 1 Surge Protective Device, 120/240 VAC, Split Phase
levr2120b
LEVITON R2120-B Type 1 Surge Protective Device, 120/240 VAC, Split Phase
Price
$118.02
/ EA
Inventory
Available for delivery
Available for pick up at
Ajax
Manufacturer:LEVITON
Manufacturer #:R2120-B
Description
R Series Type 1 Surge Panel, 120/240 VAC, Split Phase, Max Surge Current Rating of 36kA per Mode/36kA per Phase, 200kA Short Circuit Current Rating (SCCR), 10kA I-nominal (l n ) Rating, NEMA 4X Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-N: 700, L-L: 1200, Maximum Continuous Operating Voltage (MCOV): 180/360V, Plastic Enclosure, LED Status Monitoring, UL 1449 Listed, Approximate Lead Length = 18", White
Specifications
| Brand Name | Leviton | Color | Gray |
| Mounting Type | Surface | UPC | 078477583012 |
