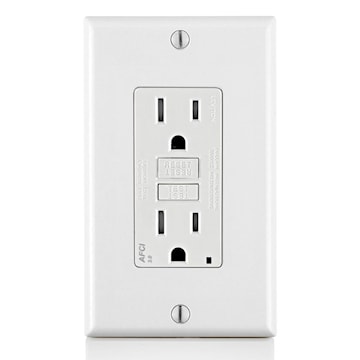

LEVITON AFTR1-W Smart-Lock Pro Outlet, Tamper-Resistant AFCI Duplex Receptacle 15 A, White
levaftr1w
LEVITON AFTR1-W Smart-Lock Pro Outlet, Tamper-Resistant AFCI Duplex Receptacle 15 A, White
Price
$55.41
/ EA
Inventory
Available for delivery
Available for pick up at
Ajax
Manufacturer:LEVITON
Manufacturer #:AFTR1-W
Description
The SmartlockPro® outlet branch circuit (OBC) AFCI receptacle offers advanced technology to help protect against electrical fires resulting from arc-faults. Designed to detect a wide range of potentially hazardous arc-faults resulting from damage in branch circuit wiring as well as extensions to branches such as appliances and cord sets, the OBC AFCI responds by interrupting power. This helps reduce the likelihood of the home’s electrical system being an ignition source of a fire.
Specifications
| Brand Name | Leviton | Sub Brand | Smart-Lock Pro |
| Item Name | AFCI Duplex Receptacle | Type | Outlet, Tamper-Resistant |
| Grade | Residential/Commercial | Size | 1.68 W x 4.21 H x 1.27 D IN |
| Voltage Rating | 125 VAC | Amperage Rating | 15 A |
| Wattage | 745.7 W | Number of Poles | 2 |
| Number of Wires | 3 | Connection Type | Back and Side Wire |
| Material | Polycarbonate | Color | White |
| Finish | Matte | Frequency Rating | 60 Hz |
| Grounding | Self-Grounding | Contact Material | Double-Wipe Brass |
| Dimensions | 1.68 in W x 1.27 in D x 4.21 in H | Mounting Type | Wallplate, Surface |
| Temperature Rating | -35 °C to 66 °C | Environmental Conditions | UL 94 Requirements, V2 Rated Flammability |
| Standards | UL 498, 1699 A, UL File Number E342815, CSA C22.2 No. 42, NOM 057 Certified, CSA M-02A, ANSI C73, Federal Specification WC-596, NEMA WD-6 | Application | Residential, Commercial |
| UPC | 078477574942 |
Packages
| 1 - rarr_unit_1 | 10 - rarr_unit_2 | 2400 - rarr_unit_3 |
