lev16252e

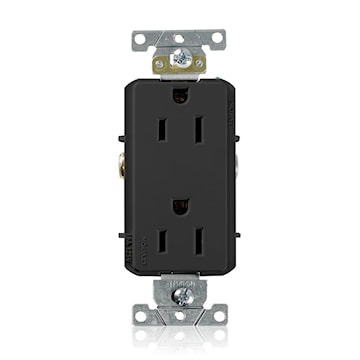

LEVITON 16252-E Decora Plus™ Duplex Outlet,Straight Blade Straight Blade Duplex Receptacle 15 A, 5-15R Black

Price $19.83 / EA
Inventory
Available for backorder
Unavailable for pick up Ajax
Qty EA
Manufacturer:LEVITON
Manufacturer #:16252-E
Documents Documents

Description

Leviton's line of heavy-duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these commercial grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

Specifications

Brand Name Leviton Sub Brand Decora Plus™
Item Name Straight Blade Duplex Receptacle Type Duplex Outlet,Straight Blade
Grade Commercial Size 46 H x 1.52 W x 1.14 D IN
Voltage Rating 125 V Amperage Rating 15 A
Number of Poles 2 Number of Wires 3
NEMA Configuration 5-15R Connection Type Back and Side Wired
NEMA Rating 5-15R Conductor Size 14 - 10 AWG
Material Thermoplastic Color Black
Phase 1 Dielectric Strength 2000 V
Grounding Self-Grounding,Self-Grounding Dimensions 1.52 in W x 1.14 in D x 46 in H
Mounting Type Wall Box Temperature Rating -40 °C to 60 °C
Environmental Conditions Flammability (Rated V-2 Per UL94) Standards NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File LR-406), UL 498 (File E13399)
Application Commercial UPC 078477837030
