lev16342

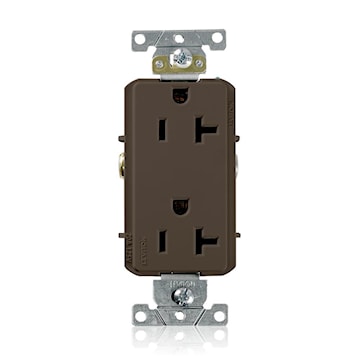

LEVITON 16342 Decora Plus™ Outlet Straight Blade Duplex Receptacle 20 A, 5-20R Brown
Final sale
lev16342
LEVITON 16342 Decora Plus™ Outlet Straight Blade Duplex Receptacle 20 A, 5-20R Brown
Price
$15.89
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:LEVITON
Manufacturer #:16342
Description
20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Decora Plus Duplex Receptacle, Straight Blade, Commercial Grade, Self Grounding, , , Side Wired, Steel Strap, - Brown
Specifications
| Brand Name | Leviton | Sub Brand | Decora Plus™ |
| Item Name | Straight Blade Duplex Receptacle | Type | Outlet |
| Grade | Commercial | Size | 46 H x 1.52 W x 1.14 D IN |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Side Wire | NEMA Rating | 5-20R |
| Conductor Size | 14-10 AWG | Material | Thermoplastic |
| Color | Brown | Frequency Rating | 50/60 Hz |
| Phase | 1 | Terminal Connection | Screw |
| Dielectric Strength | 2000 V | Grounding | Self-Grounding |
| Dimensions | 33.3 mm W x 29 mm D x 103.2 mm H | Mounting Type | Wallbox, Flush |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | UL 94 Requirements, V2 Rated Flammability |
| Standards | ANSI C73, UL 498, UL File Number E13399, CSA File Number LR406, CSA C22.2 No. 42, NOM 057 Certified, NEMA WD-1, WD-6 | Application | Commercial |
| UPC | 078477788240 |
