lev16352i

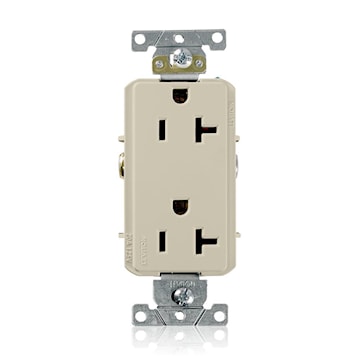

LEVITON 16352-I Decora Plus™ Outlet Straight Blade Duplex Receptacle 20 A, 5-20R Ivory
Final sale
lev16352i
LEVITON 16352-I Decora Plus™ Outlet Straight Blade Duplex Receptacle 20 A, 5-20R Ivory
Price
$5.10
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:LEVITON
Manufacturer #:16352-I
Description
Leviton's line of heavy-duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these commercial grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Specifications
| Brand Name | Leviton | Sub Brand | Decora Plus™ |
| Item Name | Straight Blade Duplex Receptacle | Type | Outlet |
| Grade | Commercial | Size | 46 H x 1.31 W x 1.14 D IN |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Back and Side Wire | NEMA Rating | 5-20R |
| Conductor Size | 14-10 AWG | Material | Thermoplastic |
| Color | Ivory | Phase | 1 |
| Dielectric Strength | 2000 V | Grounding | Self-Grounding |
| Dimensions | 1.31 in W x 1.14 in D x 46 in H | Mounting Type | Wallbox |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | UL 94 Requirements, V2 Rated Flammability |
| Standards | ANSI C73, UL 498, UL File Number E13399, CSA File Number LR406, CSA C22.2 No. 42, NOM 057 Certified, NEMA WD-1, WD-6 | Application | Commercial |
| UPC | 078477819715 |
