lev5252b

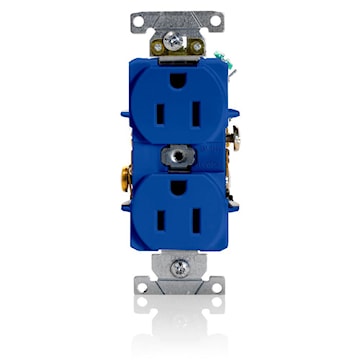

LEVITON 5252-BU Heavy Duty Straight Blade Duplex Receptacle 15 A, 5-15R Blue
Final sale
lev5252b
LEVITON 5252-BU Heavy Duty Straight Blade Duplex Receptacle 15 A, 5-15R Blue
Price
$5.84
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:LEVITON
Manufacturer #:5252-BU
Description
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Industrial Series Heavy Duty Specification Grade, Duplex Receptacle, Straight Blade, Self Grounding, Back & Side 8 Hole Feed-Thru Wired, Steel Strap, - BLUE
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Item Name | Straight Blade Duplex Receptacle | Type | Heavy Duty |
| Grade | Commercial | Size | 46 H x 1.55 W x 1.12 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-15R | Connection Type | Back and Side Wired |
| NEMA Rating | 5-15R | Conductor Size | 14 - 10 AWG |
| Material | Nylon | Color | Blue |
| Frequency Rating | 50/60 Hz | Phase | 1 |
| Dielectric Strength | 2000 V | Grounding | Self-Grounding |
| Dimensions | 1.55 in W x 1.12 in D x 46 in H | Mounting Type | Wall Box, Flush, Screw |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | Flammability (Rated V-2 Per UL94) |
| Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL Fed Spec WC-596 (File E13399), UL 498 (File E13399) | Application | Commercial |
| UPC | 078477851654 |
