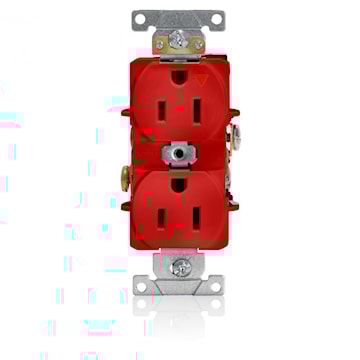

LEVITON 5262-IGR Outlet, Isolated Ground Straight Blade Duplex Receptacle 15 A, 5-15R Red
Final sale
lev5262igr
LEVITON 5262-IGR Outlet, Isolated Ground Straight Blade Duplex Receptacle 15 A, 5-15R Red
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:LEVITON
Manufacturer #:5262-IGR
Description
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Industrial Series Extra Heavy Duty Specification Grade, Duplex Receptacle, Straight Blade, Self Grounding, Back & Side 8 Hole Feed-Thru Wired, Brass Strap, -RED isolated ground
Specifications
| Brand Name | Leviton | Sub Brand | INDUSTRIAL RECEPTACLES |
| Item Name | Straight Blade Duplex Receptacle | Type | Outlet, Isolated Ground |
| Grade | Hospital | Size | 46 H x 1.33 W x 1.12 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Back and Side Wire | NEMA Rating | 5-15R |
| Conductor Size | 14-10 AWG | Material | Thermoplastic |
| Color | Red | Frequency Rating | 50/60 Hz |
| Phase | 1 | Terminal Connection | Screw |
| Dielectric Strength | 2000 V | Grounding | Self-Grounding |
| Dimensions | 38.9 mm W x 22.3 mm D x 103.2 mm H | Mounting Type | Wallbox, Flush |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | UL 94 Requirements, V2 Rated Flammability |
| Standards | ANSI C73, UL 498, CSA File Number 152105, UL File Number E13399, CSA C22.2 No. 42, Federal Specification WC-596, NOM 057 Certified, NEMA WD-1, WD-6 | Application | Industrial |
| UPC | 078477053089 |
