lev5262sw

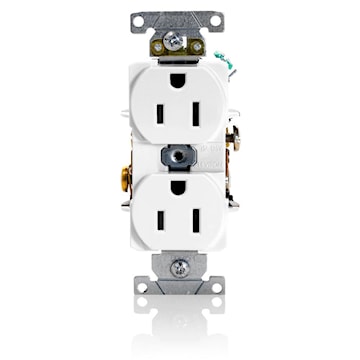

LEVITON 5262-SW Straight Blade;Duplex Outlet Straight Blade Duplex Receptacle 15 A, 5-15R White
lev5262sw
LEVITON 5262-SW Straight Blade;Duplex Outlet Straight Blade Duplex Receptacle 15 A, 5-15R White
Price
$7.74
/ EA
Inventory
Available for delivery
Unavailable for pick up
Ajax
Manufacturer:LEVITON
Manufacturer #:5262-SW
Description
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Industrial Series Heavy Duty Specification Grade, Duplex Receptacle, Straight Blade, Self Grounding, Contractor Pack, 8 Hole Feed Thru Back & Side Wired, Steel Strap - WHITE
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Item Name | Straight Blade Duplex Receptacle | Type | Outlet |
| Grade | Commercial | Size | 46 H x 1.33 W x 19 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Back and Side Wire | NEMA Rating | 5-15R |
| Conductor Size | 14-10 AWG | Material | Thermoplastic |
| Color | White | Frequency Rating | 50/60 Hz |
| Phase | 1 | Terminal Connection | Screw |
| Dielectric Strength | 2000 V | Grounding | Self-Grounding |
| Dimensions | 33.3 mm W x 21.4 mm D x 103.2 mm H | Mounting Type | Wallbox, Flush |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | UL 94 Requirements, V2 Rated Flammability |
| Standards | ANSI C73, UL 498, CSA File Number 152105, UL File Number E13399, CSA C22.2 No. 42, Federal Specification WC-596, NOM 057 Certified, NEMA WD-1, WD-6 | Application | Commercial |
| UPC | 078477141311 |
Packages
| 1 - rarr_unit_1 | ea - ea | 10 - rarr_unit_2 | 50 - rarr_unit_3 | 6400 - rarr_unit_4 |
