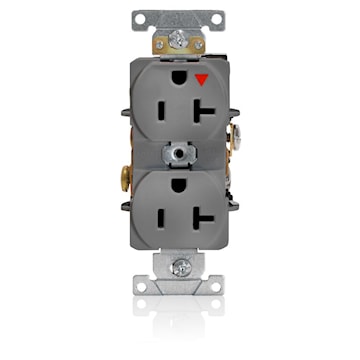

LEVITON 5362-IGG Heavy Duty, Narrow Body Straight Blade Duplex Receptacle 20 A, 5-20R Gray
Final sale
lev5362igg
LEVITON 5362-IGG Heavy Duty, Narrow Body Straight Blade Duplex Receptacle 20 A, 5-20R Gray
Price
$44.75
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:LEVITON
Manufacturer #:5362-IGG
Description
Back and side wired, isolated ground. Heavy-duty spec grade, duplex. Impact-resistant thermoplastic nylon cover and body. Smooth face does not collect dirt. Four corner latches securely fasten face. Large, triple-wipe, brass T-contacts for superior contact and conductivity. Back and side wiring options. Brass terminal screws to reduce conductor oxidation. Break-off tabs for easy two circuit conversion. Apron barrier to prevent accidental contact between terminal screw heads and metal box. Exclusive V-shaped, serrated back-wiring clamps for superior contact and conductivity. Wire lead receptacles for fast and easy installation. Backed by a limited 10-year warranty. NEMA type 5-20R.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Item Name | Straight Blade Duplex Receptacle | Type | Heavy Duty, Narrow Body |
| Grade | Industrial | Size | 46 H x 1.33 W x 1.12 D IN |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-20R | Connection Type | Back and Side Wired |
| NEMA Rating | 5-20R | Conductor Size | 14-10 AWG |
| Material | Thermoplastic | Color | Gray |
| Frequency Rating | 50/60 Hz | Phase | 1 |
| Dielectric Strength | 2000 V | Grounding | Isolated |
| Dimensions | 1.33 in W x 1.12 in D x 46 in H | Mounting Type | Wall Box |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | Flammability (Rated V-2 Per UL94) |
| Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL Fed Spec WC-596 (File E13399), UL 498 (File E13399) | Application | Industrial |
| UPC | 078477053287 |
