lev5325e

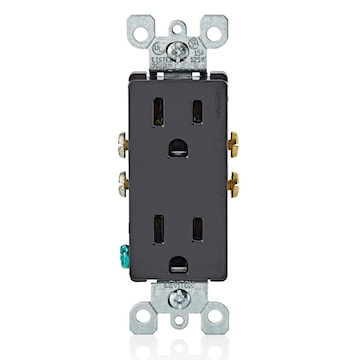

LEVITON 5325-E Decora® Outlet Straight Blade Duplex Receptacle 15 A, 5-15R Black
lev5325e
LEVITON 5325-E Decora® Outlet Straight Blade Duplex Receptacle 15 A, 5-15R Black
Price
$1.14
/ EA
Inventory
Available for delivery
Available for pick up at
Ajax
Manufacturer:LEVITON
Manufacturer #:5325-E
Description
Leviton’s comprehensive residential grade receptacle are designed with thermoplastic construction and feature a shallow build for maximum wiring room. Each duplex is also equipped with break-off plaster ears and tabs to allow for easy alignment and two-circuit conversion.
Specifications
| Brand Name | Leviton | Sub Brand | Decora® |
| Item Name | Straight Blade Duplex Receptacle | Type | Outlet |
| Grade | Commercial | Size | 4.20 H x 1.31 W x 0.98 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Quickwire Push-In and Side Wired | NEMA Rating | 5-15R |
| Conductor Size | 14 AWG | Material | Thermoplastic |
| Color | Black | Finish | Untreated |
| Frequency Rating | 60 Hz | Terminal Connection | Blade |
| Grounding | Grounding | Dimensions | 33 mm W x 17.8 mm D x 103.2 mm H |
| Mounting Type | Wallplate, Flush | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | UL 94 Requirements, V2 Rated Flammability | Standards | UL File Number E13399, CSA File Number LR406, NOM 057 Certified |
| Application | Commercial | UPC | 078477356784 |
