lev5325gy

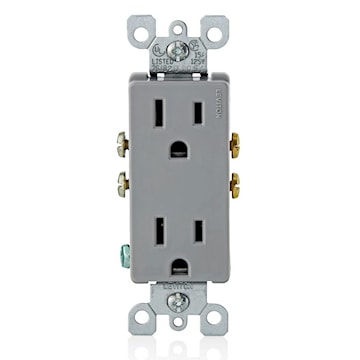

LEVITON 5325-GY Decora Straight Blade;Duplex Outlet Straight Blade Duplex Receptacle 15 A, 5-15R Gray
Final sale
lev5325gy
LEVITON 5325-GY Decora Straight Blade;Duplex Outlet Straight Blade Duplex Receptacle 15 A, 5-15R Gray
Price
$1.14
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:LEVITON
Manufacturer #:5325-GY
Description
Leviton’s comprehensive Residential Grade Receptacles portfolio includes devices rated for all residential applications in a variety of standard configurations. They are produced in an array of colors in both Decora and traditional styles. All duplex receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room. Each duplex is also equipped with break-off plaster ears and tabs to allow for easy alignment and two-circuit conversion.
Specifications
| Brand Name | Leviton | Sub Brand | Decora® |
| Item Name | Straight Blade Duplex Receptacle | Type | Outlet |
| Grade | Commercial | Size | 4.20 H x 1.31 W x 0.98 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Quickwire Push-In and Side Wired | NEMA Rating | 5-15R |
| Conductor Size | 14 AWG | Material | Thermoplastic |
| Color | Gray | Frequency Rating | 50/60 Hz |
| Terminal Connection | Screw | Grounding | Grounding |
| Dimensions | 38.7 mm W x 29 mm D x 103.2 mm H | Mounting Type | Wallplate, Surface |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | UL 94 Requirements, V2 Rated Flammability |
| Standards | UL File Number E13399, CSA File Number LR406, NOM 057 Certified | Application | Commercial |
| UPC | 078477233146 |
