lev8200hw

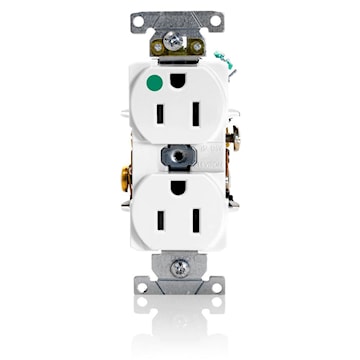

LEVITON 8200-HW Outlet Straight Blade Duplex Receptacle 15 A, 5-15R White

Price $9.76 / EA
Inventory
Available for backorder
Unavailable for pick up Ajax
Qty EA
Manufacturer:LEVITON
Manufacturer #:8200-HW

Description

Extra heavy-duty hospital grade receptacle. Impact-resistant thermoplastic nylon cover and body. Smooth face does not collect dirt. Four corner latches securely fasten face. Extra heavy-duty triple-wipe, brass T contacts for superior contact and conductivity. High-performance brass No.10-32 terminal screws to reduce conductor oxidation. Back and side-wire ground termination brass strap version. Back and side-wiring options. Break-off tabs for easy two-circuit conversion. Apron barrier to prevent accidental contact between terminal screw heads and metal box. Exclusive V-shaped, serrated back-wiring clamps for superior contact. Power Indication™ provides permanent green dot lens with 100,000 hour LED status indicator. Wire lead receptacles for fast and easy installation. Backed by a limited 10-year warranty.

Specifications

Brand Name Leviton Sub Brand Industrial Receptacles
Item Name Straight Blade Duplex Receptacle Type Outlet
Grade Hospital Size 46 H x 1.51 W x 1.18 D IN
Voltage Rating 125 V Amperage Rating 15 A
Number of Poles 2 Number of Wires 3
Connection Type Back and Side Wire NEMA Rating 5-15R
Conductor Size 14-10 AWG Material Thermoplastic
Color White Finish Matte
Phase 1 Terminal Connection Screw
Dielectric Strength 2000 V Grounding Self-Grounding
Dimensions 38.9 mm W x 28.1 mm D x 103.2 mm H Mounting Type Wallbox, Flush
Temperature Rating -40 °C to 60 °C Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Standards ANSI C73, UL 498 HG, UL File Number E13399, CSA File Number 152105, CSA C22.2 No. 42, Federal Specification WC-596, NOM 057 Certified, NEMA WD-1, WD-6 Application Commercial Grade
UPC 078477818862
