levcr20w

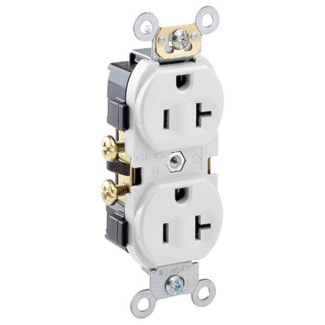

LEVITON CR20-W 2-Outlet, 1-Unit Straight Blade Duplex Receptacle 20 A, 5-20R White
levcr20w
LEVITON CR20-W 2-Outlet, 1-Unit Straight Blade Duplex Receptacle 20 A, 5-20R White
Price
$2.40
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:LEVITON
Manufacturer #:CR20-W
Description
20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Narrow Body Duplex Receptacle, Straight Blade, Commercial Grade, Self Grounding, Side Wired, Steel Strap - White.
Specifications
| Brand Name | Leviton | Sub Brand | Commercial Receptacles |
| Item Name | Straight Blade Duplex Receptacle | Type | 2-Outlet, 1-Unit |
| Grade | Commercial | Size | 46 H x 1.56 W x 19 D IN |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-20R | Connection Type | Side Wire |
| NEMA Rating | 5-20R | Conductor Size | 14-10 AWG |
| Material | Thermoplastic | Color | White |
| Frequency Rating | 50/60 Hz | Phase | 1 |
| Terminal Connection | Screw | Dielectric Strength | 2000 V |
| Grounding | Self-Grounding | Dimensions | 38.7 mm W x 29 mm D x 103.2 mm H |
| Mounting Type | Screw, Wall Box, Flush | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | UL 94 Requirements, V2 Rated Flammability | Standards | NEMA (WD-2, WD-1, WD-6),ANSI (C-73),NOM Certified (057),CSA C22.2 No. 42 (File 152105),UL Listed 498 (File E13399) |
| Application | Heavy Duty (in Aaccordance with VDE) | UPC | 078477815458 |
