levtdr15i

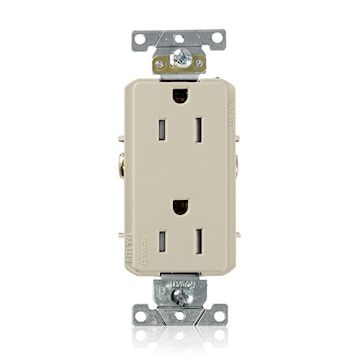

LEVITON TDR15-I Decora Plus™ Duplex Outlet,Straight Blade Straight Blade Duplex Receptacle Outlet 15 A, 5-15R Ivory
Final sale
levtdr15i
LEVITON TDR15-I Decora Plus™ Duplex Outlet,Straight Blade Straight Blade Duplex Receptacle Outlet 15 A, 5-15R Ivory
Price
$22.87
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:LEVITON
Manufacturer #:TDR15-I
Description
Tamper-resistant receptacle. NEMA 5-15R. Decora plus. Duplex receptacle. Straight blade. Commercial grade. Self grounding. Back and side wired. Steel strap.
Specifications
| Brand Name | Leviton | Sub Brand | Decora Plus™ |
| Item Name | Straight Blade Duplex Receptacle Outlet | Type | Duplex Outlet,Straight Blade |
| Grade | Heavy-Duty Industrial Specification | Size | 46 H x 1.52 W x 1.14 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Wire Type | Stranded Building Wire,Stranded Building Wire | Number of Poles | 2 |
| Number of Wires | 3 | Connection Type | Back and Side Wired |
| NEMA Rating | 5-15R | Conductor Size | 14-10 AWG |
| Material | Nylon | Color | Ivory |
| Phase | 1 | Dielectric Strength | 2000 V |
| Grounding | Self-Grounding,Self-Grounding | Contact Material | Phosphor Bronze |
| Dimensions | 1.52 in W x 1.14 in D x 46 in H | Mounting Type | Wall Box |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | Flammability (Rated V-2 Per UL94) |
| Standards | NEMA WD-1, WD-6, ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL 498 (File E13399) | Application | For Commercial Use |
| UPC | 078477391983 |
