pas26652w

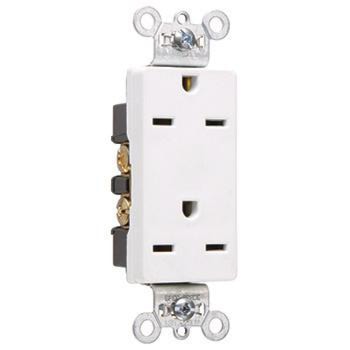

LEGRAND 26652W Pass & Seymour Heavy Duty, Decorator Straight Blade Duplex Receptacle 15 A, 6-15R White

Price $37.18 / EA
Inventory
Available for delivery
Unavailable for pick up Ajax
Qty EA
Manufacturer:LEGRAND
Manufacturer #:26652W

Description

Heavy-Duty Decorator Spec Grade Duplex Receptacle Back Side Wire 20amp 125volts, • Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body., • One-piece, brass, triple-wipe power contacts for lasting retention., • Heavy-duty compact design for easier installation and long lasting performance., • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring., • Impact-resistant nylon face., • Terminal compartments isolated from each other for positive conductor containment., • Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire., • All devices fit standard #26 opening wall plate., • Tri-drive terminal and mounting screws., • Auto-ground clip assures positive ground.

Specifications

Brand Name Pass & Seymour Sub Brand Pass & Seymour
Item Name Straight Blade Duplex Receptacle Type Heavy Duty, Decorator
Grade Specification Size 1.322 L x .833 W x 3.813 H In
Voltage Rating 250 V Amperage Rating 15 A
Number of Poles 2 Number of Wires 3
Connection Type Back and Side Wire NEMA Rating 6-15R
Conductor Size 14-10 AWG Material Nylon
Color White Finish Gloss
Frequency Rating 50/60 Hz Terminal Connection Screw
Dielectric Strength 2000 V Dimensions 33.86 mm W x 21.86 mm D x 103.36 mm H
Mounting Type Flush, Screw, Wall Temperature Rating -40 to 60 °C without Impact
Environmental Conditions UL 94 Requirements, V2 Rated Flammability Standards cUlL Listed, CSA Certified, UL 498, NEMA Rated
Application Commercial use UPC 785007785906
