pas26242

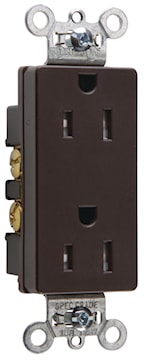

LEGRAND 26242 Receptacle 5-15R EHU duplex DECO 15A 125V bro
pas26242
LEGRAND 26242 Receptacle 5-15R EHU duplex DECO 15A 125V bro
Price
$6.37
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:LEGRAND
Manufacturer #:26242
Description
Extra Hard Usage Decorator EHU Grade Duplex Receptacle Side Wire 15amp 125volts
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Straight Blade Duplex Receptacle | Type | Decorator |
| Grade | Extra Hard Usage Specification | Size | 1.322 L x .833 W x 3.813 H In |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-15R | Connection Type | Side Wired |
| NEMA Rating | 5-15R | Conductor Size | 14-10 AWG |
| Material | Nylon | Color | White |
| Frequency Rating | 50/60 Hz | Dielectric Strength | 2000 V |
| Contact Material | Brass | Dimensions | 1.322 in L x 0.833 in W x 3.813 H |
| Mounting Type | Flush | Temperature Rating | -40 °C |
| Standards | cULus Listed, CSA Certified, UL 498, Federal Specification | Application | For Commercial Applications |
| UPC | 785007784336 |
