pas26342gry

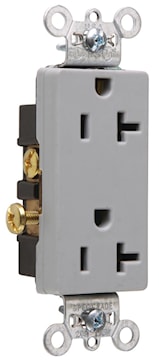

LEGRAND 26342GRY Pass & Seymour Spec Grade Decorator Receptacle, Heavy-Duty Straight Blade Duplex Receptacle 20 A, 5-20R Gray

Inventory
Available for backorder
Unavailable for pick up Ajax
Qty EA
Manufacturer:LEGRAND
Manufacturer #:26342GRY

Description

Pass Seymour® Specification grade duplex receptacle. Side wire. Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body. One-piece, brass, triple-wipe power contacts for lasting retention. Heavy-duty compact design for easier installation and long lasting performance. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face. Terminal compartments isolated from each other for positive conductor containment. Side and internal screw-pressure-plate back wire accepts 10 to 14 AWG solid or stranded wire. All devices fit standard 26 opening wall plate. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.

Specifications

Brand Name Pass & Seymour Sub Brand Pass & Seymour
Item Name Straight Blade Duplex Receptacle Type Decorator, Heavy Duty
Grade Specification Size 1.322 L x .833 W x 3.813 H In
Voltage Rating 125 V Amperage Rating 20 A
Number of Poles 2 Number of Wires 3
Connection Type Side Wire NEMA Rating 5-20R
Conductor Size 14-10 AWG Material Nylon
Color Gray Finish Gloss
Terminal Connection Screw Dielectric Strength 2000 V
Dimensions 1.322 in L x 0.833 in W x 3.813 in H Mounting Type Wall, Flush
Temperature Rating -40 °C to 60 °C Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Standards UL 498, cUL Listed, CSA Certified Application Commercial Grade
UPC 785007785203
