pas26342w

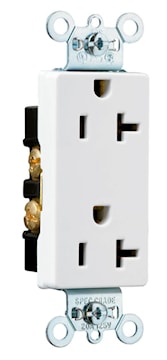

LEGRAND 26342W Pass & Seymour Decorator Straight Blade Duplex Receptacle 20 A, 5-20R White

Inventory
Available for backorder
Unavailable for pick up Ajax
Qty EA
Manufacturer:LEGRAND
Manufacturer #:26342W

Description

Heavy-Duty Decorator Spec Grade Duplex Receptacle Side Wire 20amp 125volts, • Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body., • One-piece, brass, triple-wipe power contacts for lasting retention., • Heavy-duty compact design for easier installation and long lasting performance., • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring., • Impact-resistant nylon face., • Terminal compartments isolated from each other for positive conductor containment., • Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire., • All devices fit standard #26 opening wall plate., • Tri-drive terminal and mounting screws., • Auto-ground clip assures positive ground.

Specifications

Brand Name Pass & Seymour Sub Brand Pass & Seymour
Item Name Straight Blade Duplex Receptacle Type Decorator
Grade Residential/Commercial Size 3.8 in
Voltage Rating 125 V Amperage Rating 20 A
Number of Poles 2 Number of Wires 3
Connection Type Wire Ground, Side Wire NEMA Rating 5-20R
Conductor Size 4 AWG Material Nylon
Color White Finish Decor, Gloss
Frequency Rating 50/60 Hz Terminal Connection Screw
Dimensions 33.58 mm W x 21.16 mm D x 83.34 mm H Mounting Type Wall, Flush
Standards UL 498 Application Commercial,Residential
UPC 785007785241
