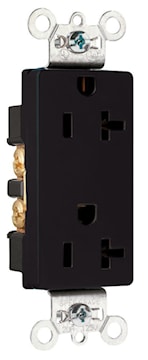

LEGRAND 26352BK Pass & Seymour Decorator, Heavy Duty Straight Blade Duplex Receptacle 20 A, 5-20R Black
Description
Heavy-Duty Decorator Spec Grade Duplex Receptacle Back Side Wire 20amp 125volts, •Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body., •One-piece, brass, triple-wipe power contacts for lasting retention., •Heavy-duty compact design for easier installation and long lasting performance., •Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring., •Impact-resistant nylon face., •Terminal compartments isolated from each other for positive conductor containment., •Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire., •All devices fit standard #26 opening wall plate., •Tri-drive terminal and mounting screws., •Auto-ground clip assures positive ground.
Specifications
Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
Item Name | Straight Blade Duplex Receptacle | Type | Decorator, Heavy Duty |
Grade | Specification | Size | 1.322 L x .833 W x 3.813 H In |
Voltage Rating | 125 V | Amperage Rating | 20 A |
Number of Poles | 2 | Number of Wires | 3 |
Connection Type | Back and Side Wire | NEMA Rating | 5-20R |
Conductor Size | 14-10 AWG | Material | Nylon |
Color | Black | Finish | Decor, Gloss |
Frequency Rating | 50/60 Hz | Terminal Connection | Screw |
Dielectric Strength | 2000 V | Dimensions | 33.58 mm W x 21.16 mm D x 83.34 mm H |
Mounting Type | Wall, Flush | Temperature Rating | -40 °C to 60 °C |
Environmental Conditions | UL 94 Requirements, V2 Rated Flammability | Standards | UL 498, cUL Listed, CSA Certified |
Application | Commercial Grade | UPC | 785007785364 |
