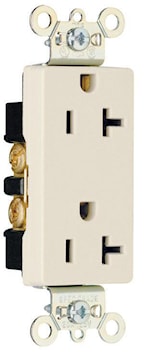

LEGRAND 26352LA Pass & Seymour Decorator, Heavy Duty, Halogen-Free Straight Blade Duplex Receptacle 20 A, 5-20R Light Almond

Price $6.61 / EA
Inventory
Available for backorder
Unavailable for pick up Ajax
Qty EA
Manufacturer:LEGRAND
Manufacturer #:26352LA

Description

Heavy-Duty Decorator Spec Grade Duplex Receptacle Back Side Wire 20amp 125volts, • Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body., • One-piece, brass, triple-wipe power contacts for lasting retention., • Heavy-duty compact design for easier installation and long lasting performance., • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring., • Impact-resistant nylon face., • Terminal compartments isolated from each other for positive conductor containment., • Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire., • All devices fit standard #26 opening wall plate., • Tri-drive terminal and mounting screws., • Auto-ground clip assures positive ground.

Specifications

Brand Name Pass & Seymour Sub Brand Pass & Seymour
Item Name Straight Blade Duplex Receptacle Type Decorator, Heavy Duty, Halogen-Free
Grade Specification Size 1.322 L x .833 W x 3.813 H In
Voltage Rating 125 V Amperage Rating 20 A
Number of Poles 2 Number of Wires 3
NEMA Configuration 5-20R Connection Type Back and Side Wired
NEMA Rating 5-20R Conductor Size 14 - 10 AWG
Material Nylon Color Light Almond
Finish Gloss Frequency Rating 50/60 Hz
Terminal Connection Screw Terminal Dielectric Strength 2000 V
Dimensions 1.322 in L x 0.833 in W x 3.813 in H Mounting Type Wall, Flush, Screw
Temperature Rating -40 degrees C Standards UL 498, cUL, CSA Certified
Application Commercial UPC 785007785333
