pas26362hgi

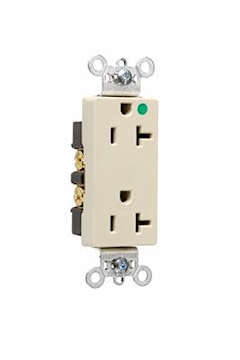

LEGRAND 26362HGI 20A DEC HOSP GR.REC IV

Price $27.15 / EA
Inventory
Available for backorder
Unavailable for pick up Ajax
Qty EA
Manufacturer:LEGRAND
Manufacturer #:26362HGI

Description

Pass Seymour® Hospital grade heavy-duty decorator duplex receptacle. Back and side wired. Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body. One-piece, brass, triple-wipe power contacts for lasting retention. Heavy-duty compact design for easier installation and long lasting performance. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face. Terminal compartments isolated from each other for positive conductor containment. Side and internal screw-pressure-plate back wire accepts 10 to 14 AWG solid or stranded wire. All devices fit standard No.26 opening wall plate. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.

Specifications

Brand Name Pass & Seymour Sub Brand Pass & Seymour
Type Decorator, Heavy Duty Grade Hospital
Size 1.322 L x .833 W x 3.813 H In Voltage Rating 125 V
Amperage Rating 20 A Number of Poles 2
Number of Wires 3 Connection Type Back Wire,Side Wire
NEMA Rating 5-20R Material Nylon
Color Natural Dielectric Strength 2000 V
Temperature Rating -40 degrees C Standards UL498, cUL CSA
Application Commercial UPC 785007785579
