pas8200hi

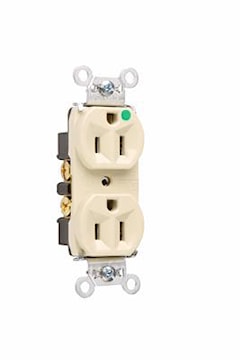

LEGRAND 8200HI Pass & Seymour Hospital Grade Receptacle, Heavy-Duty, Compact Design Straight Blade Duplex Receptacle 15 A, 5-15R Ivory
Final sale
pas8200hi
LEGRAND 8200HI Pass & Seymour Hospital Grade Receptacle, Heavy-Duty, Compact Design Straight Blade Duplex Receptacle 15 A, 5-15R Ivory
Price
$11.84
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:LEGRAND
Manufacturer #:8200HI
Description
Receptacle duplex with heavy-duty hospital grade compact design. One-piece heat-treated triple-wipe brass power contacts. Easily accessible break-off line contact connecting tab for split circuit wiring. Corrosion-resistant, zinc-plated steel strap is locked in. Internal screw-pressure-plate back wire and side wire line terminals accept #14–#10 AWG copper or copper-clad conductors. High strength thermoplastic back body. Back wire holes allow entry of conductor insulation partially into body but not into wiring compartment. Auto-ground clip assures positive ground. Compact design for easy installation. Tri-drive terminal and mounting screws.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Straight Blade Duplex Receptacle | Type | Heavy Duty, Compact Design |
| Grade | Hospital | Size | 1.322 L x .780 W x 3.281 H In |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Back and Side Wire | NEMA Rating | 5-15R |
| Conductor Size | 14-10 AWG | Material | Nylon |
| Color | Ivory | Finish | Untreated |
| Terminal Connection | Screw | Dielectric Strength | 2000 V |
| Dimensions | 1.322 in L x 0.78 in W x 3.281 in H | Mounting Type | Wall, Flush |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | UL 94 Requirements, V2 Rated Flammability |
| Standards | UL 498, CSA C22.2 No. 42 | Application | Commercial Grade |
| UPC | 785007820034 |
