pas8200hla

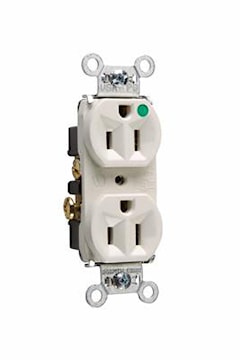

LEGRAND 8200HLA Receptacle duplex compact design 15A 125V light-almond
pas8200hla
LEGRAND 8200HLA Receptacle duplex compact design 15A 125V light-almond
Price
$10.26
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:LEGRAND
Manufacturer #:8200HLA
Description
15A 125V COMPACT HG DUPLEX RECEPT
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Straight Blade Duplex Receptacle | Type | Compact Design |
| Grade | Heavy-Duty Hospital | Size | 1.322 L x .780 W x 3.281 H In |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-15R | Connection Type | Back and Side Wired |
| NEMA Rating | 5-15R | Conductor Size | 14-10 AWG |
| Material | Nylon | Color | Light Almond |
| Dielectric Strength | 2000 V | Contact Material | Brass |
| Dimensions | 1.322 in L x 0.78 in W x 3.281 H | Mounting Type | Wall |
| Temperature Rating | -40 °C | Standards | cULus Listed, CSA C22.2 No. 42, UL 498 Listed, Federal Specification |
| Application | For Commercial Applications | UPC | 785007820140 |
