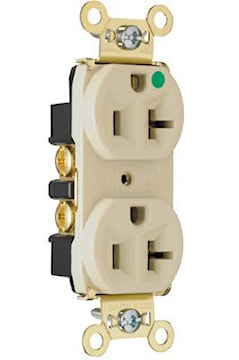

LEGRAND 8300HI Pass & Seymour Hospital Grade Receptacle Straight Blade Duplex Receptacle 20 A, 5-20R Ivory
Final sale
pas8300hi
LEGRAND 8300HI Pass & Seymour Hospital Grade Receptacle Straight Blade Duplex Receptacle 20 A, 5-20R Ivory
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:LEGRAND
Manufacturer #:8300HI
Description
Receptacle duplex with heavy-duty hospital grade compact design. One-piece heat-treated triple-wipe brass power contacts. Easily accessible break-off line contact connecting tab for split circuit wiring. Corrosion-resistant, zinc-plated steel strap is locked in. Internal screw-pressure-plate back wire and side wire line terminals accept #14–#10 AWG copper or copper-clad conductors. High strength thermoplastic back body. Back wire holes allow entry of conductor insulation partially into body but not into wiring compartment. Auto-ground clip assures positive ground. Compact design for easy installation. Tri-drive terminal and mounting screws.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Straight Blade Duplex Receptacle | Type | Compact Design,Receptacles |
| Grade | Hospital | Size | 3.3 in |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Wire Ground | NEMA Rating | 5-20R |
| Conductor Size | 4 AWG | Material | Thermoplastic |
| Color | Ivory | Finish | Untreated |
| Terminal Connection | Screw | Dimensions | 3.3 in |
| Mounting Type | Wall, Flush | Standards | UL 498 |
| Application | Industrial Spec Grade | UPC | 785007830033 |
