pas8300hred

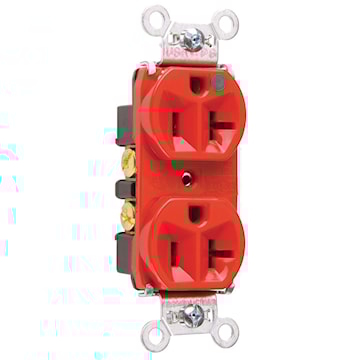

LEGRAND 8300HRED Pass & Seymour Compact Design,Receptacles Straight Blade Duplex Receptacle 20 A, 5-20R Red
pas8300hred
LEGRAND 8300HRED Pass & Seymour Compact Design,Receptacles Straight Blade Duplex Receptacle 20 A, 5-20R Red
Price
$16.51
/ EA
Inventory
Available for delivery
Unavailable for pick up
Ajax
Manufacturer:LEGRAND
Manufacturer #:8300HRED
Description
Receptacle duplex with heavy-duty hospital grade compact design. One-piece heat-treated triple-wipe brass power contacts. Easily accessible break-off line contact connecting tab for split circuit wiring. Corrosion-resistant, zinc-plated steel strap is locked in. Internal screw-pressure-plate back wire and side wire line terminals accept #14–#10 AWG copper or copper-clad conductors. High strength thermoplastic back body. Back wire holes allow entry of conductor insulation partially into body but not into wiring compartment. Auto-ground clip assures positive ground. Compact design for easy installation. Tri-drive terminal and mounting screws.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Straight Blade Duplex Receptacle | Type | Compact Design,Receptacles |
| Grade | Hospital | Size | 3.3 in |
| Voltage Rating | 126 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Wire Ground | NEMA Rating | 5-20R |
| Conductor Size | 4 AWG | Material | Thermoplastic |
| Color | Red | Finish | Untreated |
| Frequency Rating | 60 Hz | Terminal Connection | Screw |
| Dimensions | 33.5 mm W x 25 mm D x 83.3 mm H | Mounting Type | Wall, Flush |
| Standards | UL 498 | Application | Industrial Spec Grade |
| UPC | 785007830040 |
Packages
| 1 - rarr_unit_1 | 10 - rarr_unit_2 | 100 - rarr_unit_3 |
