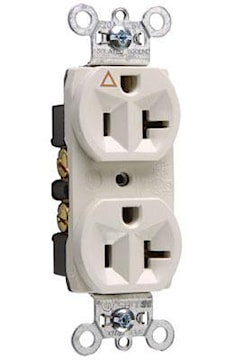

LEGRAND IG5362W Pass & Seymour Isolated Ground, Heavy Duty Straight Blade Duplex Receptacle 20 A, 5-20R White
pasig5362w
LEGRAND IG5362W Pass & Seymour Isolated Ground, Heavy Duty Straight Blade Duplex Receptacle 20 A, 5-20R White
Price
$17.11
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:LEGRAND
Manufacturer #:IG5362W
Description
RECEP DUP 20A COMMER ISOL GRD WH
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Straight Blade Duplex Receptacle | Type | Isolated Ground, Heavy Duty |
| Grade | Commercial/Specification | Size | 1.322 L x .922 W x 3.281 H In |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Back and Side Wire | NEMA Rating | 5-20R |
| Conductor Size | 14-10 AWG | Material | Nylon |
| Color | White | Finish | Matte |
| Terminal Connection | Screw | Dielectric Strength | 2000 V |
| Dimensions | 1.322 in L x 0.922 in W x 3.281 in H | Mounting Type | Wall |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | UL 94 Requirements, V2 Rated Flammability |
| Standards | UL 498, CSA C22.2 No. 42 | Application | Commercial Grade |
| UPC | 785007045383 |
