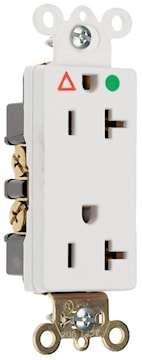

LEGRAND IG26362HGW Pass & Seymour Straight Blade Duplex Receptacle 20 A, 5-20R White
pasig26362hgw
LEGRAND IG26362HGW Pass & Seymour Straight Blade Duplex Receptacle 20 A, 5-20R White
Inventory
Unavailable for order at Ajax
Manufacturer:LEGRAND
Manufacturer #:IG26362HGW
Description
Receptacle duplex with isolated ground, heavy-duty decorator hospital grade. IG symbol and isolated ground markings for easy identification and circuit delineation. Triple-wipe brass contacts ensure lasting, positive contact with plug blades. High-impact resistant nylon face resists impacts and scrapes. Corrosion-resistant plated steel strap. Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation. Plastic barrier isolates grounding terminal from mounting strap and metal boxes. Side and internal screw-pressure-plate back wire capability with #14-#10 AWG copper or copper-clad, solid or stranded wire. Auto-ground clip assures positive ground.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Straight Blade Duplex Receptacle | Type | Decorator, Heavy Duty, Halogen-Free |
| Grade | Hospital | Size | 1.322 L x .833 W x 3.813 H In |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-20R | Connection Type | Back and Side Wired |
| NEMA Rating | 5-20R | Conductor Size | 14 - 10 AWG |
| Material | Nylon | Color | White |
| Frequency Rating | 60 Hz | Terminal Connection | Screw Terminal |
| Dielectric Strength | 2000 V | Grounding | Isolated |
| Dimensions | 1.322 in L x 0.833 in W x 3.813 in H | Mounting Type | Wall, Flush, Screw |
| Temperature Rating | -40 degrees C | Standards | UL 498, CSA C22.2 No. 42 |
| Application | Commercial | UPC | 785007781724 |
