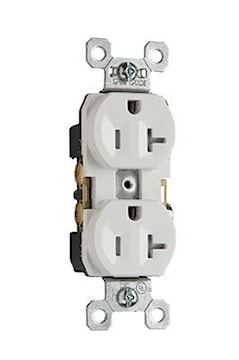

LEGRAND TR20W Pass & Seymour Tamper-Resistant Straight Blade Duplex Receptacle 20 A, 5-20R White

Inventory
Available for delivery
Unavailable for pick up Ajax
Qty EA
Manufacturer:LEGRAND
Manufacturer #:TR20W

Description

Tamper-Resistant Commercial Grade Receptacles, 20A, 125V., • Dual mechanical shutter system to help prevent insertions of foreign objects. , • Two drive screws anchor strap to back body and face where abrupt removal torque is greatest. , • .032 inch thick brass triple-wipe power contacts for lasting retention. , • Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly. , • Auto-ground clip assures positive ground. , • Easily accessed break-off line-contact connecting tab for fast and easy split-circuitwiring. , • Backed-out tri-drive steel terminal screws. Side wire capability.

Specifications

Brand Name Pass & Seymour Sub Brand Pass & Seymour
Item Name Straight Blade Duplex Receptacle Type Tamper-Resistant
Grade Commercial Size 3.3 in
Voltage Rating 125 V Amperage Rating 20 A
Number of Poles 2 Number of Wires 3
Connection Type Wire Ground NEMA Rating 5-20R
Conductor Size 4 AWG Material Thermoplastic
Color White Finish Untreated, Gloss
Frequency Rating 50/60 Hz Terminal Connection Screw
Dimensions 33.58 mm W x 28.7 mm D x 83.34 mm H Mounting Type Wall, Flush
Standards UL 498 Application Commercial
UPC 785007241655
