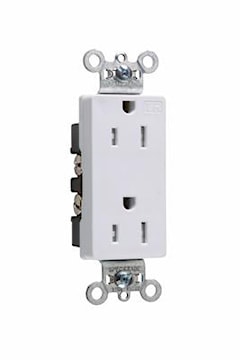

LEGRAND TR26262W Pass & Seymour Tamper-Resistant, Decorator, Heavy Duty Straight Blade Duplex Receptacle 15 A, 5-15R White

Price $13.64 / EA
Inventory
Available for backorder
Unavailable for pick up Ajax
Qty EA
Manufacturer:LEGRAND
Manufacturer #:TR26262W

Description

Tamper-Resistant heavy-duty decorator Spec grade receptacles, back and side wire, receptacle. Dual mechanical shutter system to help prevent insertion of foreign objects. Auto-ground clip assures positive ground. Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring. Backed-out tri-drive brass terminal screws for faster installation. Internal screw-pressure-plate back and side wire capability. Two back wire holes for additional wiring flexibility. Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly. 0.032 inch thick brass triple-wipe power contacts. Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.

Specifications

Brand Name Pass & Seymour Sub Brand Pass & Seymour
Item Name Straight Blade Duplex Receptacle Type Tamper-Resistant, Decorator, Heavy Duty
Grade Specification Size 1.322 L x .833 W x 3.813 H In
Voltage Rating 125 V Amperage Rating 15 A
Number of Poles 2 Number of Wires 3
NEMA Configuration 5-15R Connection Type Back and Side Wired
NEMA Rating 5-15R Conductor Size 14 - 10 AWG
Material Nylon Color White
Finish Gloss Terminal Connection Screw Terminal
Dielectric Strength 2000 V Dimensions 1.322 in L x 0.833 in W x 3.813 in H
Mounting Type Wall, Flush, Screw Temperature Rating -40 degrees C
Standards UL 498, cUL, CSA Certified Application Commercial
UPC 785007277289
