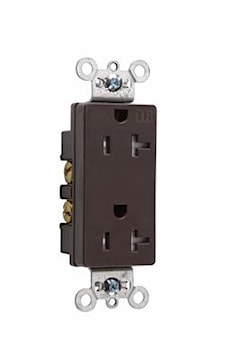

LEGRAND TR26362 Pass & Seymour Tamper-Resistant, Decorator Straight Blade Duplex Receptacle 20 A, 5-20R Brown
Description
Tamper-Resistant Heavy-Duty Decorator Spec Grade Duplex Receptacle Back Side Wire 20amp 125volts, • Dual mechanical shutter system to help prevent insertion of foreign objects., • Auto-ground clip assures positive ground., • Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring., • Backed-out tri-drive brass terminal screws for faster installation., • Internal screw-pressure-plate back and side wire capability., • Two back wire holes for additional wiring flexibility., • Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly., • .032 inch thick brass triple-wipe power contacts., • Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
Specifications
Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
Item Name | Straight Blade Duplex Receptacle | Type | Tamper-Resistant, Decorator |
Grade | Commercial | Size | 5.13x2x1.4 |
Voltage Rating | 125 V | Amperage Rating | 20 A |
Number of Poles | 2 | Number of Wires | 3 |
Connection Type | Back and Side Wire | NEMA Rating | 5-20R |
Conductor Size | 10-14 AWG | Material | Thermoplastic |
Color | Brown | Finish | Untreated, Gloss |
Frequency Rating | 50/60 Hz | Phase | 3 |
Terminal Connection | Screw | Dimensions | 33.58 mm W x 28.7 mm D x 83.34 mm H |
Mounting Type | Wall, Flush | Standards | UL 498 |
Application | Commercial | UPC | 785007277326 |
