pastrig26262hgw

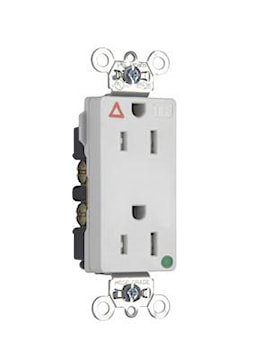

LEGRAND TRIG26262HGW TR 2P3W DUP RC 15A 125VB/S WRE DEC HG WHT

Price $51.72 / EA
Inventory
Available for backorder
Unavailable for pick up Ajax
Qty EA
Manufacturer:LEGRAND
Manufacturer #:TRIG26262HGW

Description

Corrosion resistant, plated wraparound steel strap locked into assembly to prohibit strap from bending away from body. One-piece, brass, triple wipe power contacts for lasting retention. Heavy-duty compact design for easier installation and long lasting performance. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face. Terminal compartments isolated from each other for positive conductor containment. Side and internal screw pressure plate back wire accepts #14 – #10 AWG solid or stranded wire. All devices fit standard #26 opening wall plate. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.

Specifications

Brand Name Legrand Sub Brand Pass & Seymour
Type Non-Reversing Grade Hospital
Size 1.187 L x 1.25 W x 3.625 H In Voltage Rating 125 V
Amperage Rating 15 A Number of Poles 2
Number of Wires 3 Connection Type Back Wire,Side Wire
NEMA Rating 5-15R Material Nylon
Color White Dielectric Strength 2000 V
Temperature Rating -40 degrees C Standards cULus UL498
Application Commercial UPC 785007012583
