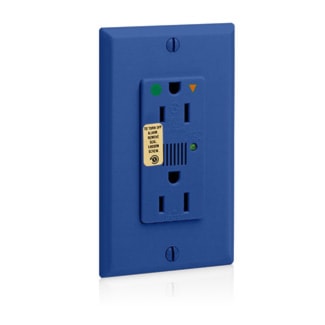

LEVITON 8280-IGB Decora Plus™ 3 SPD Surge Protective Duplex Receptacle 15 A, Blue

Inventory
Unavailable for order
Manufacturer:LEVITON
Manufacturer #:8280-IGB
Documents Documents

Description

Decora Plus® Hospital grade duplex surge protective receptacle. Nylon/polycarbonate body. Brass 10-32/brass-plated steel terminal screw. Brass 8-32/brass-plated steel grounding screw. Nylon face. Brass triple-wipe line contact. Zinc-plated steel yoke. Zinc-plated steel clamp nut. Brass-plated steel ground clip. Delrin® Acetal shutter mechanism. 15 A, 125 V, NEMA-5-15R, 2-pole, 3-wire. Withstands 2000 V per UL498 dielectric voltage. Full rated current rating. -40 to 60°C operating temperature. Surge with indicator light and audible alarm, back and side wired. Steel strap. Can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Outstanding surge protection devices divert damaging voltage transients or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.

Specifications

Brand Name Leviton Sub Brand Decora Plus™
Item Name Surge Protective Duplex Receptacle Type 3 SPD
Grade Heavy-Duty Hospital Size 3.81 H x 1.7 W x 1.47 D IN
Voltage Rating 125 V Amperage Rating 15 A
Number of Poles 2 Number of Wires 3
Connection Type Back and Side Wired Short Circuit Rating 5 KAMP
Conductor Size 14-10 AWG Material Polycarbonate
Color Blue Grounding Self-Grounding
Contact Material Brass Dimensions 1.7 in W x 1.47 in D x 3.81 in H
Mounting Type Box Temperature Rating -40 °C to 60 °C
Environmental Conditions Flammability (Rated V-2 per UL94) Standards NEMA WD-1, WD-6, ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL 498 (File E13399)
Application Hospitals UPC 078477008980
