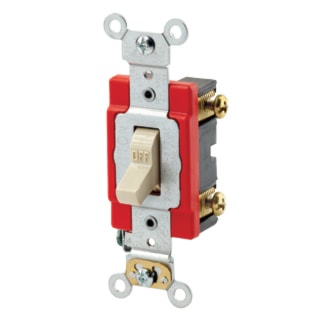

LEVITON 1221-LHI Toggle Switch Toggle Switch 20 A, 120 V, Back and Side Wire
Description
Toggle AC quiet switch. 0.048 inch thick galvanized steel strap. Thermoplastic base. Polycarbonate toggle. Thermoplastic cover. Silver alloy contact. Brass 8-32 terminal screws. Brass 8-32 grounding screw. Brass ground clips. 1 HP at 120 V HP rating. 16 A maximum amperage HP rating. Self-grounding. 20 A, 120 V, 1-pole. 50000 cycles minimum endurance. Back and side wired. Rated V-2 per UL94 flammability. -40 to 65°C operating temperature. Lighted handle. Illuminated off. Industrial grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Specifications
Brand Name | Leviton | Sub Brand | Industrial Switches |
Item Name | Toggle Switch | Type | Toggle Switch |
Voltage Rating | 120 V | Amperage Rating | 20 A |
Number of Poles | 1 | Actuator | Toggle |
Color | Ivory | Grade | Commercial |
Action | SP | Wiring Configuration | Back and Side Wire |
Dimensions | 1.31 in W x 1.6 in D x 46 in H | Mounting | Box |
Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 111 (File 152105), UL Fed Spec WS896E (File E7458), UL 20, RoHS Compliant | Application | Commercial |
UPC | 078477240458 |
