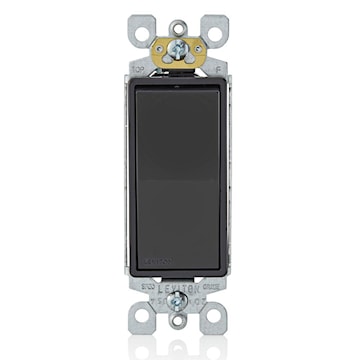

LEVITON 5603-P2E Decora® AC Quiet, 3 Way Rocker Switch 120/277 VAC, 15 A, Ebony Black
lev5603p2e
LEVITON 5603-P2E Decora® AC Quiet, 3 Way Rocker Switch 120/277 VAC, 15 A, Ebony Black
Price
$3.18
/ EA
Inventory
Available for delivery
Available for pick up at
Ajax
Manufacturer:LEVITON
Manufacturer #:5603-P2E
Description
Decora® Standard quiet rocker switch with side wire and quick wired for push-in with green ground screw. Self grounded when installed in a properly grounded metal box. It is made of thermoplastic body and steel strap.
Specifications
| Brand Name | Leviton | Sub Brand | Decora® |
| Item Name | Rocker Switch | Type | AC Quiet, 3 Way |
| Voltage Rating | 120 - 277 VAC | Amperage Rating | 15 A |
| Number of Poles | 3 | Power Rating | 1/2 hp at 120 V, 2 hp at 240 V |
| Contact Rating | 120/277 VAC, 15 A | Actuator | Rocker |
| Mounting | Wall | Temperature Rating | -40 to 120 °C |
| Material | Thermoplastic | Color | Ebony Black |
| Dimensions | 1.4 in W x 1.38 in D x 4.2 in H | Environmental Conditions | UL 94 Requirements, V2 Rated Flammability |
| Standards | UL File Number E7458, CSA File Number LR3413, NOM 057 Certified | Application | For Residential use |
| UPC | 078477339787 |
