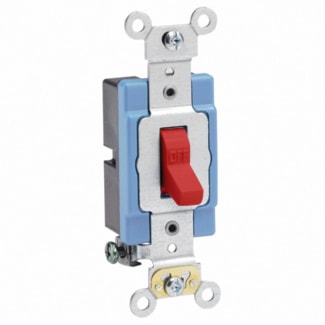

LEVITON 1201-2R Commercial Grade Toggle Switch Toggle Switch 15 A, 120/277 VAC, Back and Side Wire

Price $28.47 / EA
Inventory
Available for backorder
Unavailable for pick up Ajax
  • Oshawa
  • Ajax
  • Peterborough
  • Belleville
  • Sesco CDC
  • Etobicoke
  • Vinyl
  • Hamilton
Qty EA
Manufacturer:LEVITON
Manufacturer #:1201-2R
LEVITON logo
Documents Documents

Description

Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Heavy gauge copper alloy one-piece arm for top performance. Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance. External clamp-type terminal provides secure connection for back and side wiring.

Specifications

Brand Name Leviton Sub Brand INDUSTRIAL SWITCHES
Item Name Commercial Grade Toggle Switch Type Toggle Switch
Voltage Rating 120 - 277 VAC Amperage Rating 15 A
Number of Poles 1 Actuator Toggle
Color Red Grade Commercial
Action Off Wiring Configuration Back and Side Wire
Terminal Connection Screw Material Thermoplastic
Dimensions 1.31 W x 1.3 in D x 4.6 in H Mounting Box, Flush, Screw
Standards NEMA WD-1 and WD-6, ANSI C-73, NOM 057 Certified, CSA C22.2 No. 111, CSA File Number 152105, Federal Specification WS-896E, UL File Number E7458, UL 20, RoHS Compliant, UL 94-V2 Flammability Rating Application Commercial
UPC 078477240656
