levms302ds

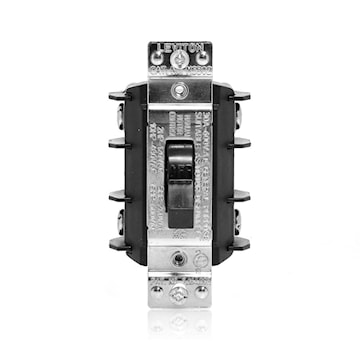

LEVITON MS302-DS Commercial Grade Toggle Switch Double-Pole AC Motor Starter Switch,Standard Toggle 30 A, 600 VAC, Back and Side Wire

Price $55.73 / EA
Inventory
Available for delivery
Unavailable for pick up Ajax
Qty EA
Manufacturer:LEVITON
Manufacturer #:MS302-DS

Description

Industrial grade AC motor starter switch. Two-pole, standard toggle. Non-grounding. Back and side wiring. Manual motor controllers suitable as motor disconnect. All molded parts are thermoplastic to resist impact, chemicals, temperature, tracking and arcing. Cam-driven mechanism enhances fast-make/slow-break. Silver-alloy contacts for maximum conductivity and service life. External clamps accept back and side wiring. Insulating barrier between terminals provide isolation between phases. Nickel-plated brass mounting yoke for superior strength and corrosion resistance. Oversized toggle provides positive actuation, even with gloved hand.

Specifications

Brand Name Leviton Sub Brand Motor Starter Switches
Type Double-Pole AC Motor Starter Switch,Standard Toggle Voltage Rating 600 VAC
Amperage Rating 30 A Number of Poles 2
Actuator Toggle Color Black
Action DPST Standards NEMA (WD-1 & WD-6);ANSI (C-73);NOM Certified (057);UL508 (File E63969);cUL per CSA C22.2 No. 111 (File E63969)
Application Commercial UPC 078477374139
