lev1288

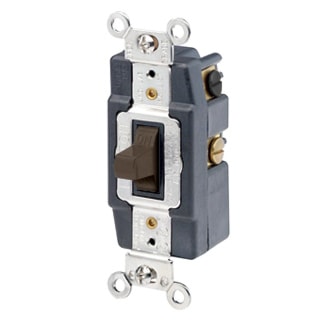

LEVITON 1288 Industrial Grade Toggle Switch Toggle Switch 30 A, 120 - 277 VAC, Back and Side Wire
Final sale
lev1288
LEVITON 1288 Industrial Grade Toggle Switch Toggle Switch 30 A, 120 - 277 VAC, Back and Side Wire
Price
$240.54
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:LEVITON
Manufacturer #:1288
Description
Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Heavy gauge copper alloy one-piece arm for top performance. Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance. External clamp-type terminal provides secure connection for back and side wiring.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Switches |
| Item Name | Industrial Grade Toggle Switch | Type | Toggle Switch |
| Voltage Rating | 120 - 277 VAC | Amperage Rating | 30 A |
| Number of Poles | 2 | Actuator | Toggle |
| Contact Configuration | DPDT | Color | Brown |
| Grade | Industrial | Action | Maintained |
| Wiring Configuration | Back and Side Wire | Terminal Connection | Screw |
| Material | Thermoplastic | Dimensions | 1.37 in W x 2.29 in D x 46 in H |
| Mounting | Box, Flush, Screw | Standards | NEMA (WD-1 and WD-6), ANSI (C-73), NOM 057 Certified, CSA C22.2 No. 111 (File 152105), UL Federal Specification WS896E (File E7458), UL Standard (UL 20) |
| Application | Commercial | UPC | 078477168370 |
