lev12022w
Final sale
lev12022w

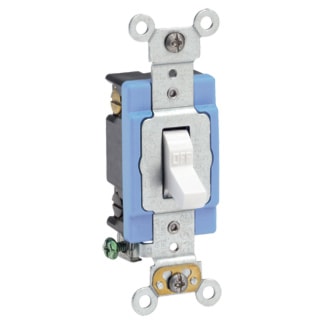

LEVITON 1202-2W Industrial Grade Toggle Switch Toggle Switch 15 A, 120/277 VAC, Back and Side Wire

Price $55.27 / EA
Inventory
Available for backorder
Unavailable for pick up Ajax
  • Oshawa
  • Ajax
  • Peterborough
  • Belleville
  • Sesco CDC
  • Etobicoke
  • Vinyl
  • Hamilton
Qty EA
Manufacturer:LEVITON
Manufacturer #:1202-2W
LEVITON logo
Documents Documents

Description

Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Heavy gauge copper alloy one-piece arm for top performance. Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance. External clamp-type terminal provides secure connection for back and side wiring.

Specifications

Brand Name Leviton Sub Brand INDUSTRIAL SWITCHES
Item Name Industrial Grade Toggle Switch Type Toggle Switch
Voltage Rating 120 - 277 VAC Amperage Rating 15 A
Number of Poles 2 Actuator Toggle
Color White Grade Industrial
Action DP Wiring Configuration Back and Side Wire
Terminal Connection Screw Material Thermoplastic
Dimensions 1.31 in W x 13 in D x 46 in H Mounting Box, Flush, Screw
Standards NEMA (WD-1, WD-6), ANSI (C-73), NOM (057), CSA C22.2 No. 111 (File 152105), UL Fed Spec WS896E (File E7458), UL Standard (UL 20), RoHS Compliant Application Commercial
UPC 078477241646
