lev12232il

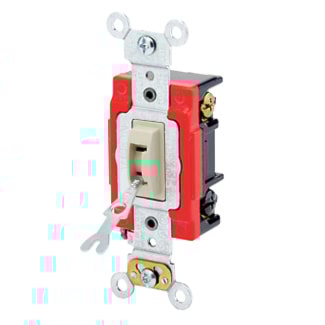

LEVITON 1223-2IL Industrial Grade Toggle Switch Toggle Switch 20 A, 120/277 VAC, Back and Side Wire
Final sale
lev12232il
LEVITON 1223-2IL Industrial Grade Toggle Switch Toggle Switch 20 A, 120/277 VAC, Back and Side Wire
Price
$112.30
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:LEVITON
Manufacturer #:1223-2IL
Description
Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Heavy gauge copper alloy one-piece arm for top performance. Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance. External clamp-type terminal provides secure connection for back and side wiring.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Switches |
| Item Name | Industrial Grade Toggle Switch | Type | 3-Way |
| Voltage Rating | 120 - 277 VAC | Amperage Rating | 20 A |
| Number of Poles | 1 | Actuator | Key |
| Color | Ivory | Grade | Industrial |
| Wiring Configuration | Back and Side Wire | Terminal Connection | Screw |
| Material | Thermoplastic | Dimensions | 1.31 in W x 13 in D x 46 in H |
| Mounting | Box, Flush, Screw | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 111 (File 152105), UL Fed Spec WS896E (File E7458), UL 20, RoHS Compliant |
| Application | Commercial | UPC | 078477358481 |
