ilsalns40012

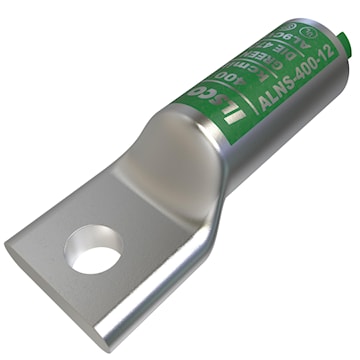

ILSCO ALNS-400-12 AL COMP 400 KCMIL 9/16 T UL CSA
ilsalns40012
ILSCO ALNS-400-12 AL COMP 400 KCMIL 9/16 T UL CSA
Price
$76.90
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:ILSCO
Manufacturer #:ALNS-400-12
Description
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 1/2 in, UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper/Aluminum Primary Conductor 400 kcmil, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Green, primary color Silver, die index 472,
Specifications
| Brand Name | Ilsco | Sub Brand | SureCrimp® |
| Type | ALNS:1 HOLE LONG BARREL | Number of Holes | 1 |
| Barrel Length | 2.303 in | Material | Aluminum |
| Voltage Rating | 35000 V | Barrel Type | Long |
| Strip Length | 60.083 mm | Temperature Rating | 90 °C |
| Standards | CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed | Application | Aluminum Compression Lug |
| UPC | 783669687668 |
