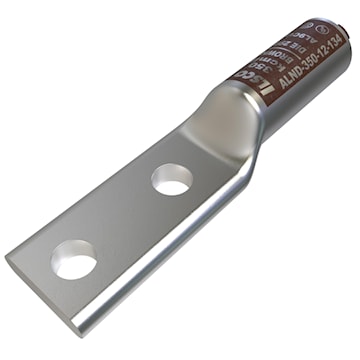

ILSCO ALND-350-12-134 SureCrimp® Compression Lug 2 Holes Aluminum 350 kcmil Stranded 1/2 in Stud size
Final sale
ilsalnd35012134
ILSCO ALND-350-12-134 SureCrimp® Compression Lug 2 Holes Aluminum 350 kcmil Stranded 1/2 in Stud size
Price
$67.46
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:ILSCO
Manufacturer #:ALND-350-12-134
Description
Aluminum compression lug, chamfered barrel, color coded. Manufactured from high strength aluminum alloy. Provides low contact resistance, maximum conductivity and excellent crimping characteristics. Ensures reliability for copper or aluminum conductors. Prevents oxides from forming.
Specifications
| Brand Name | Ilsco | Sub Brand | SureCrimp® |
| Item Name | Compression Lug | Type | ALND:2 HOLE LONG BARREL |
| Conductor Size | 350 kcmil Stranded | Number of Holes | 2 |
| Stud Size | 1/2 in | Barrel Length | 2.353 in |
| Tongue Size | 1.516 in W x 0.385 in T | Overall Length | 6.065 in |
| Color Code | Brown | Material | Aluminum |
| Series/Model | ALND | Voltage Rating | 35000 V |
| Barrel Type | Long, Chamfered Entry | Strip Length | 61.353 mm |
| Finish | Electro Tin Plated | Temperature Rating | 90 °C |
| Standards | UL 453G, UL 486A/B File Number E6207 Listed, CSA File Number LR-29601 Certified | Application | Aluminum Compression Lug |
| UPC | 783669687552 |
